Product Details

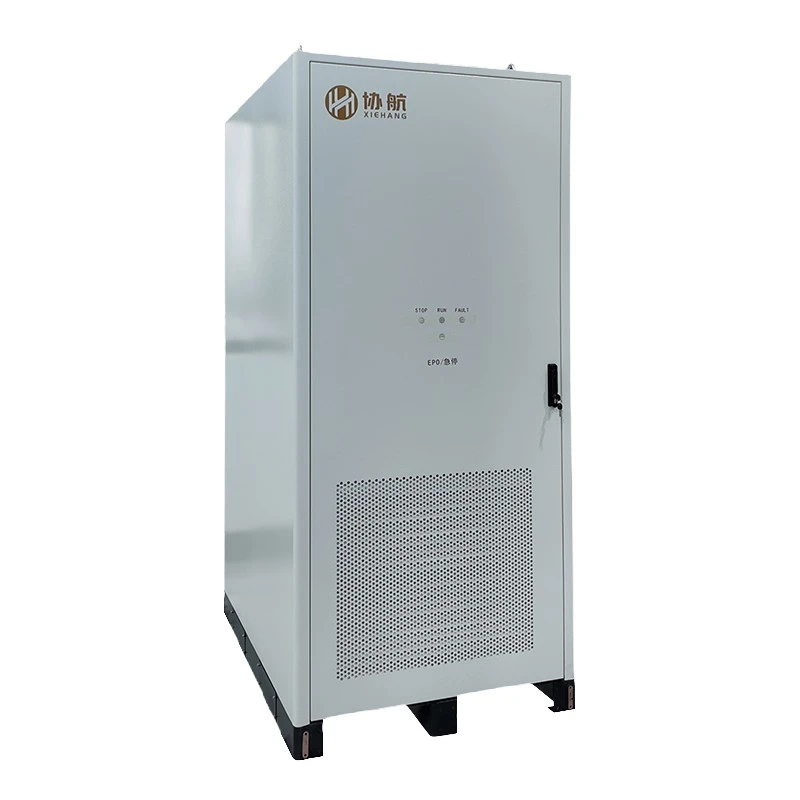

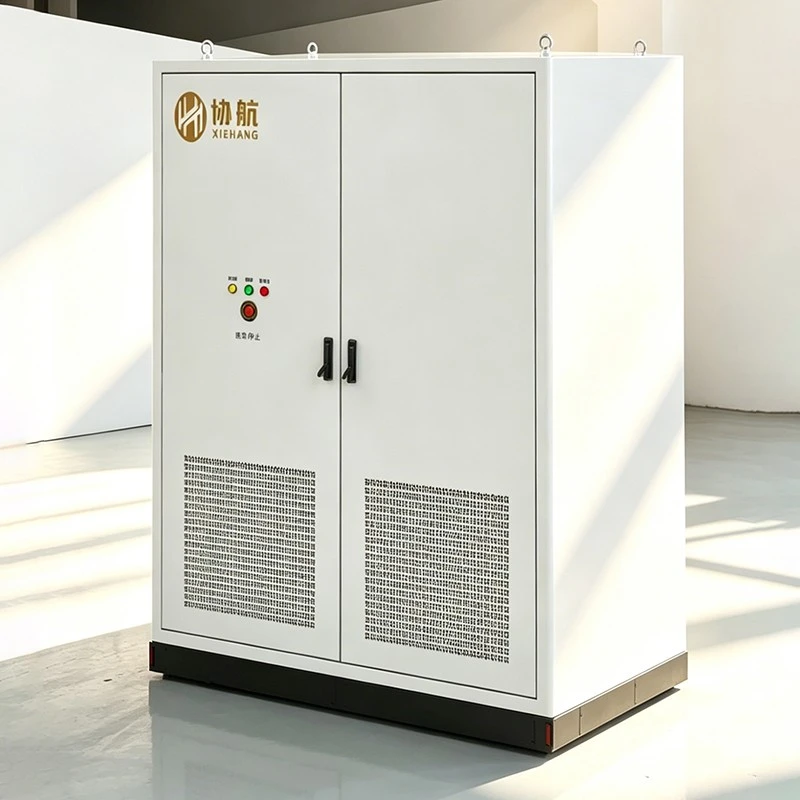

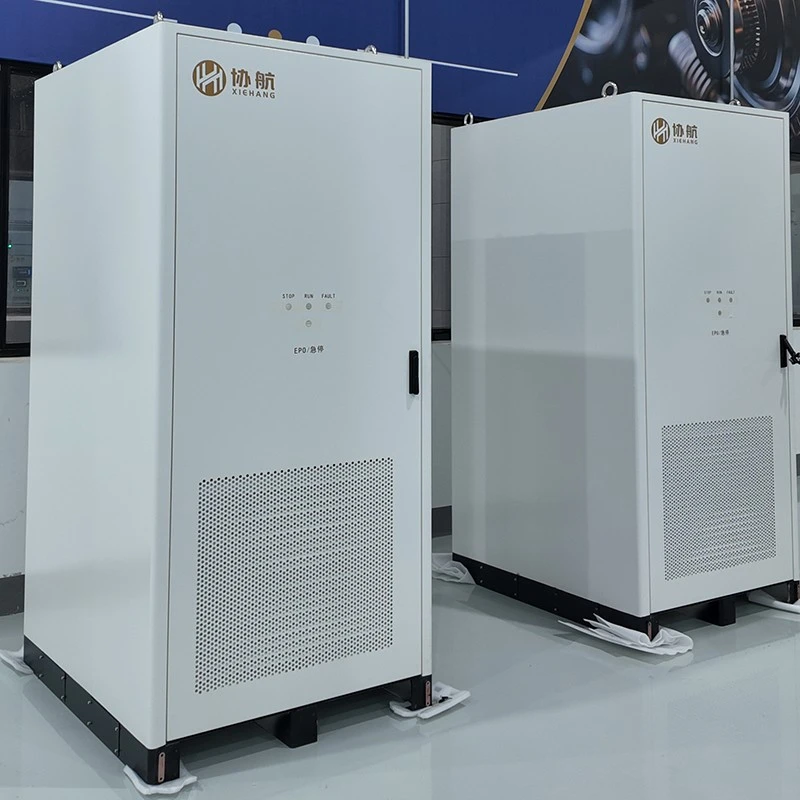

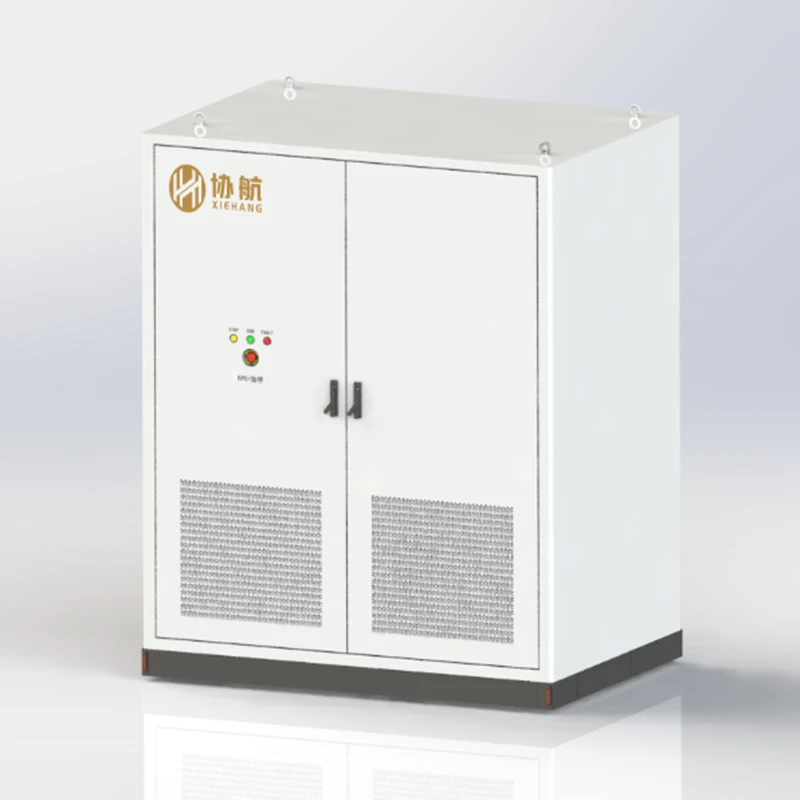

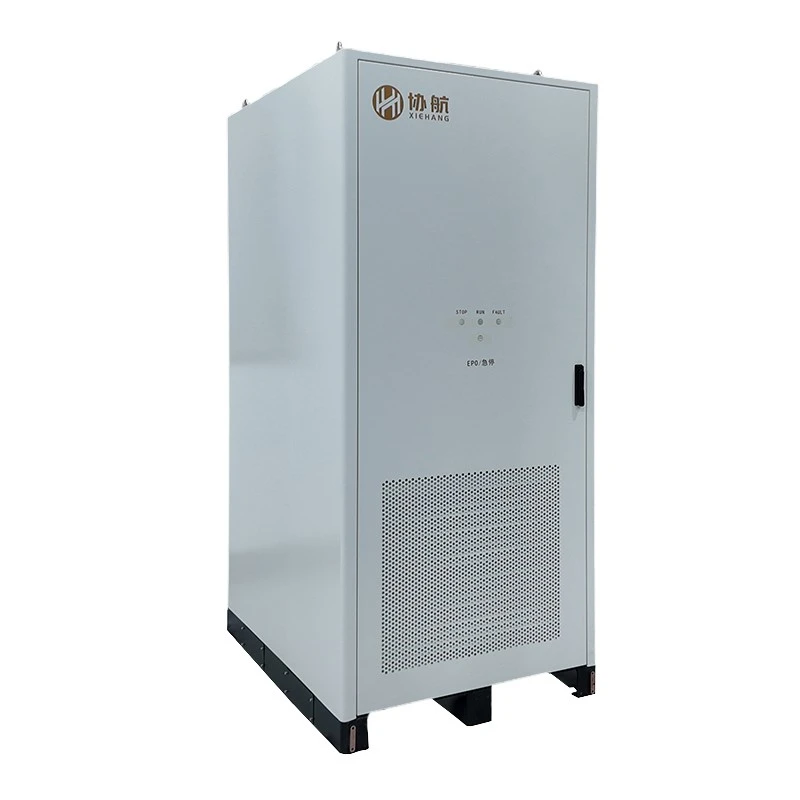

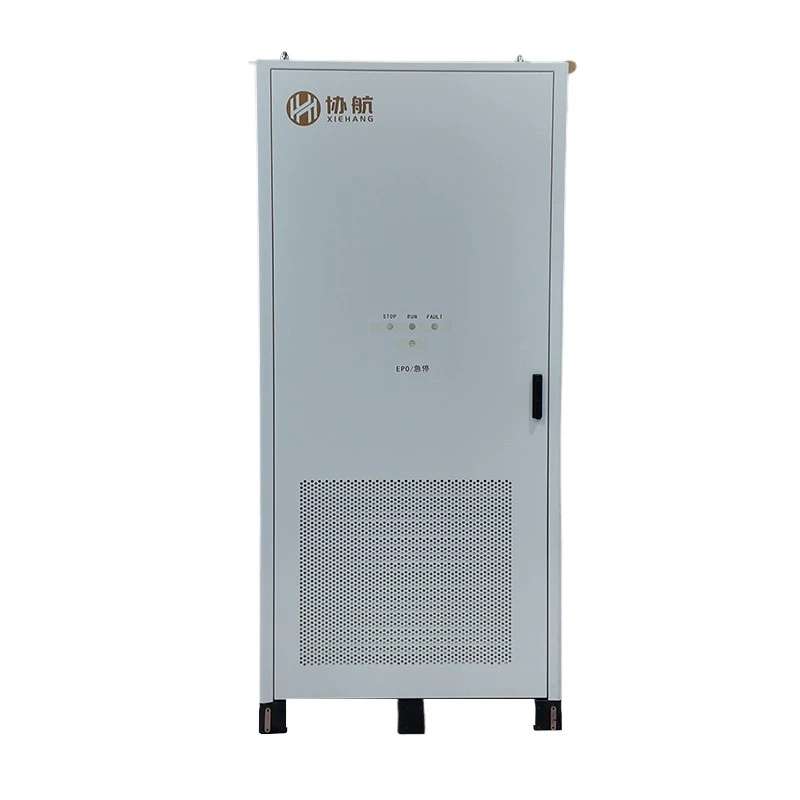

Efficiency at scale is the primary goal of this large scale battery energy storage system. By utilizing high-density LiFePO4 cells, we've optimized the energy-to-footprint ratio, ensuring that each large scale battery storage module delivers a verified 8000+ cycle life. This is the professional's choice for utility-side storage, offering a large scale battery energy storage system that is fully IEC certified and shipped with comprehensive UN38.3 logistics data for global deployment.
Technical Parameters
|
Technical Specification |
522kWh C&I Storage Cabinet |
|
Battery Chemistry |
Premium LiFePO4 cells (LFP) |
|
Cell Capacity & Type |
314Ah High-Density Matrix |
|
Nominal Energy Capacity |
522.4 96kWh |
|
Rated AC Output Power |
250 kW |
|
Cycle Life |
8000+ cycles (@80% DOD, 0.5C) |
|
Thermal Management |
Advanced Closed-Loop Liquid Cooling |
|
Fire Suppression System |
Perfluoroketone&Aerosol Fire Protection System |
|
Enclosure Protection |
IP55 (All-Weather Outdoor Rated) |
|
Certifications |
CE, IEC 62619, UN3536, UN38.3 |
Our Workshop
FAQ
Q: What certifications do your products have?
A: Our products are designed for global export and strictly comply with international safety standards. We hold a comprehensive range of certifications, including UN38.3, MSDS, CE, IEC62619, and IEC62109. For our industrial 314Ah cell-based systems, we ensure all components meet the rigorous entry requirements of your local market.
Q: What's the warranty for your Energy Storage system?
A: We offer a standard 5 to 10-year warranty depending on the specific model and application scenario. Our technical support team is available 24/7 to ensure your system operates reliably throughout its entire lifespan.
Q: Can you provide overall solar and energy storage project layout design?
A: Yes. Beyond supplying hardware, we offer full system design services. Our engineering team can provide Single Line Diagrams (SLD), structural layouts, and capacity optimization based on your specific load profile and solar resource data.
