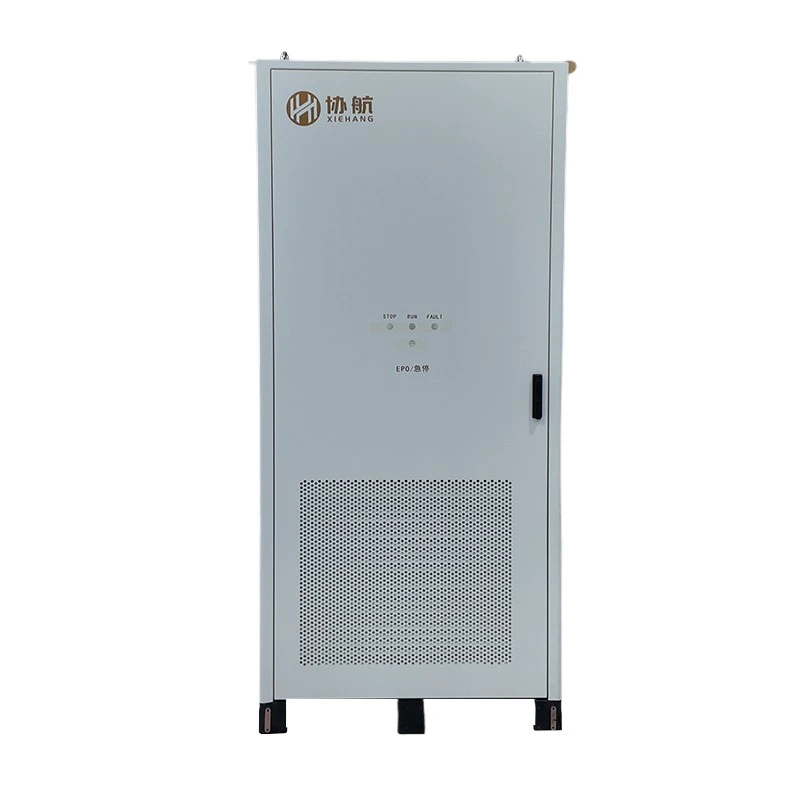

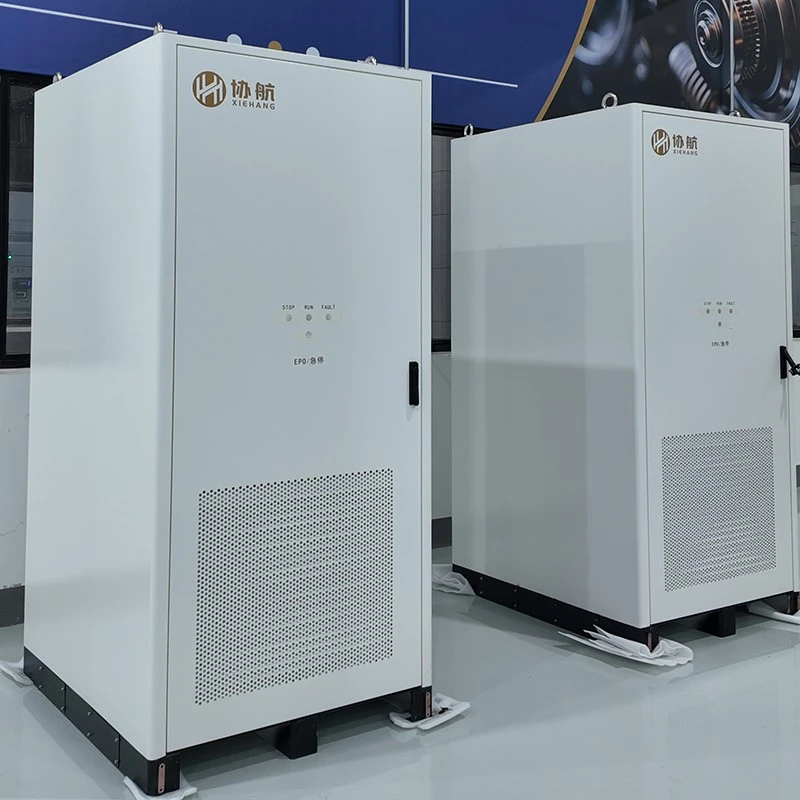

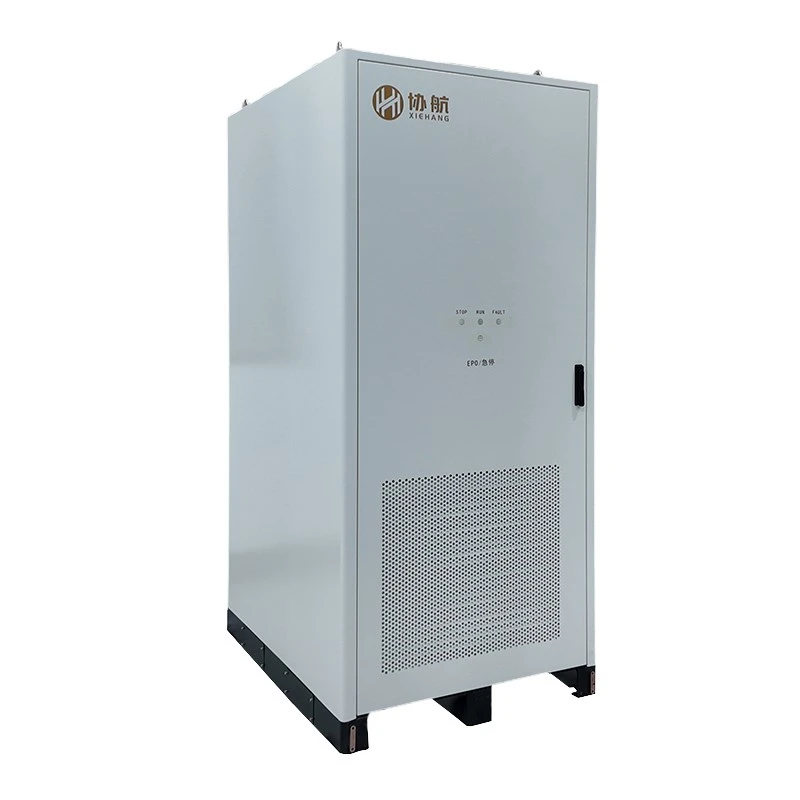

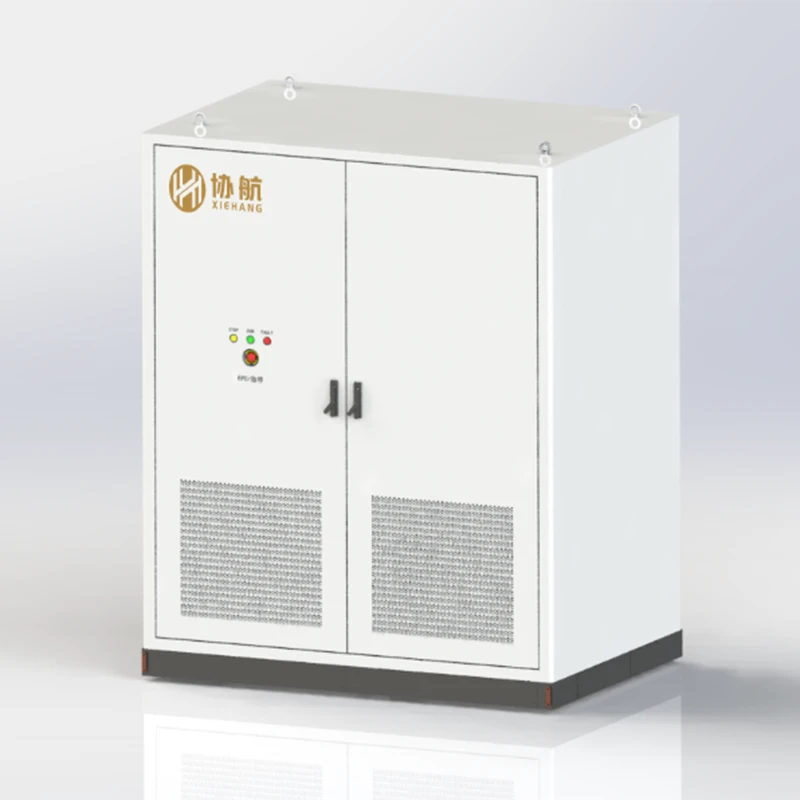

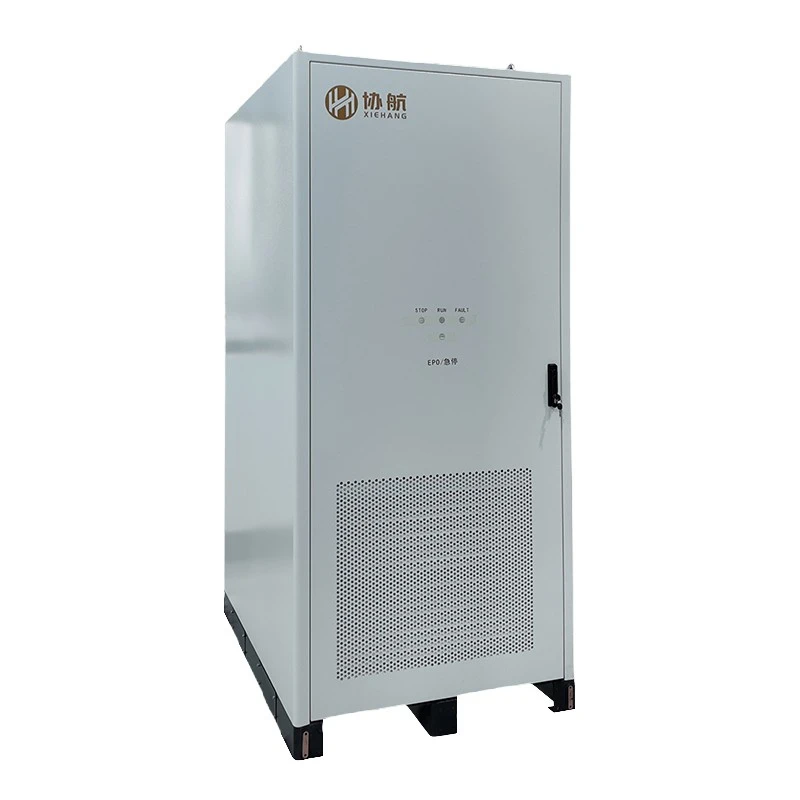

Product Details
By maintaining uniform temperatures across the LiFePO4 cells, this liquid cooling bess system effectively eliminates hotspots that lead to premature failure. This thermal stability is why we can confidently promise a 8000+ cycle life, providing a level of reliability that standard air-cooled racks simply can't match. Every liquid cooled battery energy storage system we deploy is a masterclass in fire safety and efficiency, backed by rigorous MSDS reporting and industrial-tier fire suppression systems.
Technical Parameters
|
Technical Specification |
522kWh C&I Storage Cabinet |
|
Battery Chemistry |
Premium LiFePO4 cells (LFP) |
|
Cell Capacity & Type |
314Ah High-Density Matrix |
|
Nominal Energy Capacity |
522.4 96kWh |
|
Rated AC Output Power |
250 kW |
|
Cycle Life |
8000+ cycles (@80% DOD, 0.5C) |
|
Thermal Management |
Advanced Closed-Loop Liquid Cooling |
|
Fire Suppression System |
Perfluoroketone&Aerosol Fire Protection System |
|
Enclosure Protection |
IP55 (All-Weather Outdoor Rated) |
|
Certifications |
CE, IEC 62619, UN3536, UN38.3 |
Our Workshop
FAQ
Q: Do you have support policies for long-term overseas distributors?
A: We highly value our global partners. We provide long-term distributors with exclusive pricing, marketing materials (HD photos and brochures), priority lead times, and dedicated technical training. We also support our distributors in local exhibitions to expand their market presence.
Q: Why is a liquid cooling bess system preferred over air cooling for capacities above 200kWh?
A: When you run high-current commercial cycles through a 261kWh/522kWh system, standard air cooling creates dangerous internal "micro-climates"-cells in the center of the rack run much hotter than cells on the outside. This temperature imbalance causes uneven cell aging and kills your warranty. Our liquid cooled energy storage system circulates a dedicated cooling loop directly across every single module. By keeping the maximum temperature difference between cells under 3°C, the system prevents thermal breakdown, ensures absolute fire safety, and secures that vital 8000+ cycle life for your commercial asset.
Q: What international compliance and safety certifications do you provide for commercial project site approvals?
A: We know that local grid operators and fire inspectors can hold up a commercial energy project for months if your documentation isn't perfect. That's why our entire Commercial Energy Storage System portfolio arrives factory-certified with comprehensive paperwork. We provide CE, IEC 62619, and full MSDS sheets for the internal electronics and battery modules. For large-scale infrastructure deployments, our cabinets comply with UN3536 and UN38.3 transport and structural safety regulations, allowing your engineering team to clear local grid-tie permits without bureaucratic delays.
